HEIDENHAIN length gauges deliver high accuracy, even over large measuring ranges. They are commonly used wherever fast, reliable, and accurate measurements are required, such as in production metrology, multi-gauging fixtures, measuring equipment monitoring, and position measurement.

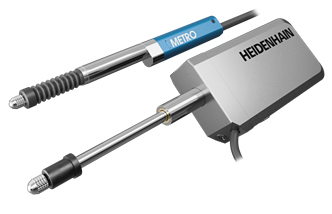

Heidenhain METRO Series Length Guages
- Incremental length gauges
- System accuracy: ±1 µm / ±0.5 µm / ±0.2 µm
- Measuring range of up to 100 mm
- High repeatability
- Version with low measuring forces

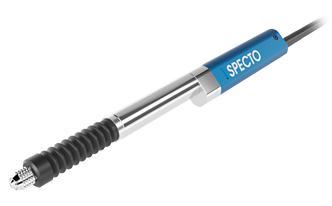

Heidenhain SPECTO Series Length Guages
- Incremental length gauges
- System accuracy: ±1 µm
- Measuring range of up to 30 mm
- Dust-proof and protected from splash water
- Highly compact design

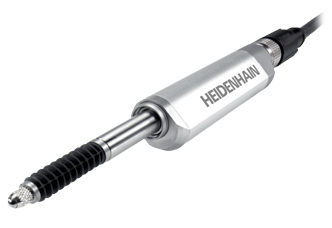

Heidenhain ACANTO Series Length Guages
- Absolute length gauges with EnDat interface
- System accuracy: ±2 µm / ±1 µm
- Measuring range of up to 30 mm
- Serial data transmission
- Dust-proof and protected from splash water

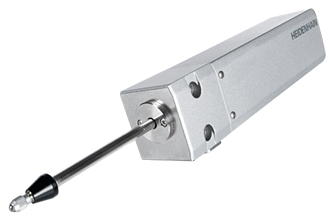

Heidenhain CERTO Series Length Guages
- Incremental length gauges
- Interferential scanning principle for exceptional accuracy
- System accuracy of down to ±0.03 µm
- Measuring range of up to 60 mm
- Defined thermal behavior
Contact ATI Systems for Heidenhain Length Guages
