ATI Electrical Panels including Hoffman previously Eldon
Terminal and Junction Boxes
nVent HOFFMAN provides reliable solutions that are consistently in-stock to help protect electronic or terminal wire connections
- Locally available and ideal for a broad range of applications
- Efficient design and construction that saves time
- Meets ratings of NEMA, UL, and IEC standards organizations
Mild Steel Terminal Box STB
The mild steel terminal box range, STB, with a IP 66 protection degree, is available off the shelf in many different sizes. The STB range is well suited for demanding indoor environments. Water and dust are prevented from entering the terminal box, thus eliminating the risk for component failure, and with that, unnecessary downtime.
Industry Standards
- UL 508A Listed; Type 4, 12, 13; File No. E92044
- cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4 12, 13; File No. E92044
- NEMA/EEMAC Type 4, 12, 13
- IEC 62208 IP66
- CE, UK CA, UL
Sizes range from 150mm to 400mm in height x 150mm to 800mm in width x 80mm to 120mm in depth.

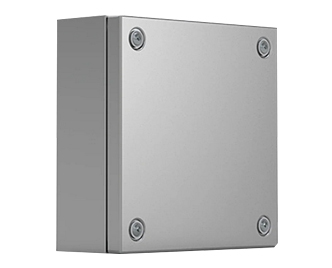

Stainless Steel Terminal Box SSTB
The stainless steel terminal box range, SSTB, with a IP 66 protection degree, is available off the shelf in many different sizes. The SSTB range is well suited for indoor and outdoor environments thanks to its corrosion resistance. Water and dust are prevented from entering the terminal box, thus eliminating the risk for component failure, and with that, unnecessary downtime.
Industry Standards
- UL 508A Listed; Type 4X, 12, 13; File No. E92044
- cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4X 12, 13; File No. E92044
- NEMA/EEMAC Type 4X, 12, 13
- IEC 62208 IP66
- CE, UK CA, UL
Sizes range from 150mm to 400mm in height x 150mm to 800mm in width x 80mm to 120mm in depth.
Contact ATI Systems for Terminal and Junction Boxes
